Heavy duty process cooling & heating units

We supply contractors with high performance, European engineered fluid chillers and heat pumps designed for continuous operation in demanding commercial and industrial environments. Ranging from 15kW mobile units up to heavy duty 1100+ kW industrial chillers, our portfolio ensures you have the exact capacity and configuration required for complex installations.

Enquire about Quantor for your project

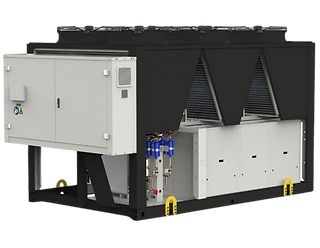

Quantor Plus

The Quantor Plus series represents the next generation of future proof process cooling. Operating on the ecologically friendly, low-GWP R32 refrigerant, these units deliver higher efficiency and cooling capacity than comparable R410A systems under identical ambient conditions. By combining a newly developed copper-aluminium condenser with an electronic expansion valve, the Quantor Plus significantly reduces total refrigerant charge while maximising partial load efficiency. Available in quantities from 63 kW up to more than 700 kW (by given water regime). All models can be specified as cooling only or as reversible heat pumps. Designed for outdoor installation, these units are engineered to maintain reliable temperature control in extreme environments.

Models from 63 to 700+ kW available.
Utilises R32 refrigerant for low GWP and superior thermodynamic efficiency.
Available as standard cooling units or fully reversible heat pump configurations.
Capable of precise outlet temperatures from -10°C to 8°C.
When operating in reversible mode, units can deliver hot water up to 60°C.
Built for demanding outdoor placement, from -10°C to 46°C.
Larger models feature two independent cooling circuits for increased process safety and redundancy.

Kreyo Pro

The Kreyo Pro is a next generation air-cooled fluid chiller designed for optimal energy efficiency and strict environmental compliance. Operating on the ecologically friendly, low GWP R32 refrigerant, it provides a future-proof, all in one heating and cooling solution for complex industrial installations. Engineered for extreme outdoor conditions, it operates reliably in ambient temperatures from -20°C to 46°C and can maintain operation up to 52°C under partial load. To maximise partial load efficiency and minimise energy consumption, the unit is equipped as standard with an electronic expansion valve, frequency controlled fans and an integrated hydraulic module featuring a variable speed drive primary pump.

Units from 40.1 kW to 176.8 kW of cooling capacity.
Utilises R32 refrigerant for a significantly lower GWP and superior thermodynamic performance.
Fully reversible heat pump configuration comes standard, delivering both high performance cooling and heating from a single footprint.
Capable of highly precise, low temperature cooling with outlet temperatures ranging from -12°C to 20°C.
Delivers warm water up to 55°C.
Comes standard with frequency controlled fans, an electronic expansion valve and a variable speed drive pump to drastically reduce energy consumption during periods of lower thermal demand.
Built for outdoor placement.

Quantor 242 - 1100 kW

Engineered for large scale industrial temperature control, the heavy duty Quantor series delivers cooling capacities from 242 kW to over 1100 kW. Featuring a modular build and an optimised condenser construction for superior heat transfer, these units provide reliable, continuous operation in demanding environments. Designed specifically for outdoor placement, all models can be configured as standard cooling only units or as fully reversible heat pumps. To ensure long term durability, the series is built with stainless steel water side piping.

Capacity range: 242 kW to 1100+ kW.
Operating modes: Available as standard cooling units or reversible heat pump configurations for both heating and cooling.
Fluid temperature control: Capable of achieving outlet temperatures from -10°C to 18°C.
Heating capability: Capable of delivering hot water up to 55°C.
Ambient tolerance: Outdoor conditions from -10°C to 46°C.
Robust construction
Operates on R410A refrigerant with standard 3ph electrical connection.
Suitable for direct process cooling as well as facility wide room temperating when paired with additional fan coils.

Quantor 67 - 226 kW

Engineered for precise industrial temperature control, the standard Quantor series delivers cooling capacities ranging from 67 kW to 226 kW. Operating on R410A refrigerant, these highly modular units are built for continuous outdoor operation in demanding environments. They feature hermetic scroll compressors, stainless steel water side piping and robust galvanised sheet metal construction with premium powder coating. Available as standard cooling only units or fully reversible heat pumps, contractors can also specify options for partial or total heat recovery to maximise overall system efficiency.

Available in sizes from 67 to 226 kW.
Larger models are equipped with two independent cooling circuits to increase process safety.
Configurable for standard cooling, reversible heat pump operation and partial or total heat recovery.
Capable of precise cold-water outlet temperatures from -10°C to 18°C.
When operating in reverse mode, the units can deliver hot water up to 55°C.
Engineered strictly for outdoor placement.
Gradual activation of the compressors allow for superior partial load efficiency.
Features a compressor encapsulated in a noise reduction compartment and heavy duty anti-vibration mounts.

Quantor Pro

The Quantor Pro series offers highly efficient, air-cooled fluid chillers tailored for small to medium process installations. Delivering cooling capacities between 15 kW and 45 kW, these compact units feature an integrated hydronic module with a stainless steel buffer tank, pump and expansion vessel, providing contractors with a complete plug and play solution. Designed for outdoor placement, all models operate on R410A refrigerant and are fully reversible, offering both high performance cooling and heat pump functionality.

Available from 15 to 45 kW of cooling capacity.
Reversible operation comes standard, functioning as both a fluid chiller and a heat pump.
Engineered for demanding outdoor environments, operating reliably in ambient temperatures from -10°C to 45°C.
Features an internal stainless steel plate heat exchanger and an integrated module comprising of a stainless steel buffer thank, expansion vessel and pump.

Chilly Max

Engineered for small to medium capacity industrial applications, the Chilly Max series delivers reliable process temperature control within a highly compact, mobile footprint. Designed as a complete plug and play solution, these units feature a fully integrated hydronic module containing a stainless steel buffer tank, centrifugal pump and a 3 kW electric heating rod. The top mounted fan and easily removable side panels provide contractors with maximum placement flexibility and simplified maintenance access.

Mobile Heating Unit

Our range of mobile heating-units are designed for the quick preparation of hot water and are offered in three variations: 9, 18 and 24 kW. These units can easily be connected to a tank or existing line. Thanks to their stainless steel construction, they are especially suited to operation in humid environments.

These units are ideal for facilities without flowing hot water, or where targeted heating of units is required.

Pages from Prospekt_Fermflex_ENG_print_neu.png
